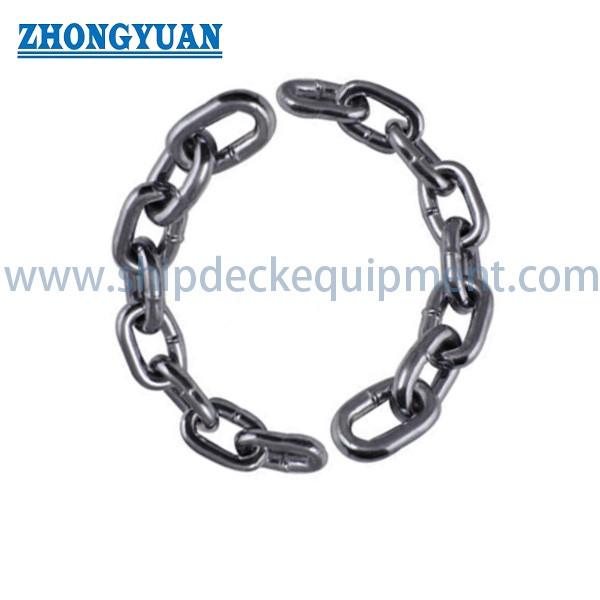

Chain DIN 5685 With German Standard

Brand Name : Zhongyuan

Model Number : Standard and Customized

Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.

Place of Origin : China

MOQ : 1

Price : As per quotation

Payment Terms : TT, L/C, Etc.

Supply Ability : Satisfy clients needs

Delivery Time : As per offer

Packaging Details : Pallet or Customized

Type : Cranked Link Chain

Material : Alloy Steel, High Tensile, Heat Treated.

Surface Treatment : Galvanized, Black Painted, Self Color, Polishing, Powder Coated

Structure : Flash Butt Welded Chain

Feature : Heat Resistant

Usage : Drag Chain

Color : Self Color, Red ,Green, or as to your request

Application : Ship,Iron And Steel Industry, Petroleum Chemical Industry, Coal Mine

Contact Now

Chain DIN5685 With German Standard

Description:

Chain din 5685 with German standard are a sort of welded, round steel chain with long or short-length links that are neither calibrated nor tested. These chain are made to German Standard. The material of chain is in line with DIN 17151. The chain are not suitable for lifting applications, nor being subjected to static loads. There are two types of the chain din 5685, A (short) and C (long). Finishes of chain din 5685 are self-colored, black painted, bright zinc painted, and hot dip galvanized.

Main Technical Specifications:

  1. Type:Cranked Link Chain
  2. Material:Alloy Steel, High Tensile, Heat Treated.
  3. Surface Treatment:Zinc Plated, Black Painted, Hot Dip Galvanized, Powder Coated
  4. Structure:Flash Butt Welded Chain
  5. Feature:Heat Resistant
  6. Usage:Drag Chain
  7. Color: Self Color, Red ,Green, or as to your request
  8. Application: Ship,Iron And Steel Industry, Petroleum Chemical Industry, Coal Mine

Main Technical Parameters:

Size(d) Inside Length (t) Outside Width(b) Weight Per 100m Working
Load		 Breaking Load Type Of
Link
mm mm mm kg n n
2 12 8 7 500 1250 A
22 6 C
2.5 14 10 11 750 2000 A
24 10 C
3 16 12 16.5 1120 2800 A
26 15 C
3.5 18 14 22.5 1500 3850 A
28 20 C
4 19 16 30 2000 5000 A
32 27 C
4.5 20 18 39.5 2500 6300 A
34 35 C
5 21 20 50 3150 7750 A
35 43 C
5.5 23 22 60.5 3800 9500 A
38.5 52 C
6 24 24 73 4500 11500 A
42 63 C
6.5 26 26 86 5400 13500 A
45.5 74 C
7 28 28 100 6000 15000 A
49 86 C
8 32 32 130 8000 20000 A
52 110 C
8.5 34 34 149 9000 22500 A
56 125 C
9 36 36 165 10000 25000 A
59 141 C
10 40 40 205 12500 31000 A
65 175 C
11 44 40 250 15000 38000 A
72 211 C
12 48 48 290 18000 45000 A
78 255 C
13 52 52 345 21200 53000 A
82 295 C
